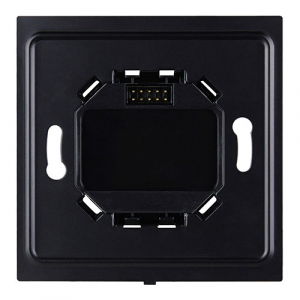

KNX Panel Power Interface EU(US) has two interfaces, and one interface connects to KNX/EIB, the other connects to panel or sensor, etc. The power interface provides power supply and communication signal to KNX panels or sensors.
Basic Parameters
Working voltage 21~30V DC
Communication KNX
Cable diameter of KNX terminal 0.6-0.8mm
External Environment
Working temperature -5?~45?
Working relative humidity =90%
Storage temperature -20?~60?
Storage relative humidity =93%
Specifications
Dimensions
EU: 83.5×83.5×26.5 US: 83.5×114.5×26.5(mm)
Net weight
EU: 103g US: 132g
Housing material Flame-retardant nylon, metal
Installation Wall box (See Figure 9 - 11)
Protection rating (Compliant with EN 60529) IP20
