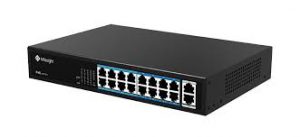

SWITCH PoE MILESIGHT 16 PORTE DW10/100Mbps PoE + 2 UP 1000Mbps, MAX 200W, IEEE802.3 af/at

Codice MS-S0216-GL
Effettua il login.

Switch PoE 16 Porte DW10/100Mbpx PoE + 2 Porte UP 1000Mbps


Ports16X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports


StandardIEEE802.3 10Base-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3x


Switching Capacity14.8Gbps (non-blocking)


Packet Forwarding Rate @64byte5.36Mpps


Packet Forwarding Cache4M


MAC16K


Power SupplyBuilt-in switching power supply
AC 100~240V, 50-60Hz, 2.5A


PoE StandardIEEE802.3af/at


Max. PoE PowerMax capacity: 200W
Max capacity for single port: 30W


Functional SwitchStandard Mode: Port 1~16: 10/100Mbps auto-sensing @100 meters & Port 17~18: 1000Mbps @100 meters
Extend Mode: Port 1~8: 10/100Mbps auto-sensing @100 meters & Port 9~16: 10Mbps @250 meters & Port 17~18: 1000Mbps @100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.


IndicatorPower Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)


Cooling Fan1


Operating Temperature-20°~55°C


Storage Temperature-40°~75°C


Operating/Storage Humidity10%~90%RH(non-condensing)


Lightning Protection/ Protection LevelPort lightning protection: 4KV 8/20us
Protection level: IP30


Dimensions270.4mm(W)*181mm(D)*44mm(H)


Weight1.5kg


Installation MethodDesktop Type, Wall Mounted Type
