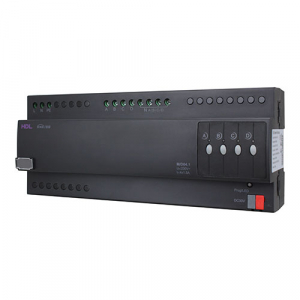

KNX 4CH 1.5A Universal Dimming Actuator
model:HDL-M/D04.1
KNX Universal Dimming Actuator has 3 types (2CH3A, 4CH1.5A, and 6CH1A) of output circuits, which supports multiple control types. This series of dimming actuators are in full compliance with European Safety Standards and KNX standard protocol.
¦ 3 types of output circuits: 2, 4 and 6 channels of dimming actuator.
¦ Supports leading edge mode and trailing edge mode.
¦ Parallel channels may form large current output, and its configuration should be consistent.
¦ Manual control: Manual operation for each channel.
¦ Control types: Statistics ON time, Status response, Status recovery, Short-circuit protection, Over load protection, Overheat protection, Staircase light, Flashing light, Scene control, Scene dimming, Read temperature, Overheat alarm, Dimming higher limit control, Dimming lower limit control, Sequence control, Heating control (PWM).
Basic Parameters
Working voltage 21~30V DC Class 2
Working current 15mA/30V DC
Input voltage 120V/240V AC (50/60Hz)
Communication KNX
Cable diameter of KNX terminal 0.6 - 0.8mm
User control Manual operation for each channel
Line in/Line out terminals 2.5 - 4mm2
Output channel
HDL-M/D02.1: 2CH/3A
HDL-M/D04.1: 4CH/1.5A
HDL-M/D06.1: 6CH/1A
External Environmental
Working temperature -5?~45?
Working relative humidity =90%
Storage temperature -20?~60?
Storage relative humidity =93%
Specifications
Dimensions 90×216×64(mm)
Net weight
HDL-M/D02.1: 0.73kg
HDL-M/D04.1: 0.76kg
HDL-M/D06.1: 0.78kg
Housing material Flame-retardant nylon
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
