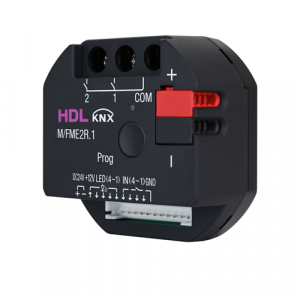

MODULO KNX DA SCATOLA 2CH OUT 10A, 4CH ING., 4CH PER LED DI SEGNALAZIONE, NECESSITA ALIM. AUX 20-30Vdc

Codice HDL-M/FME2R.1
Effettua il login.

KNX 2CH 10A Flush-mounted Switching Actuator (EU) is an actuator 2CH 10A relay control channel(s), 4 dry contact input channels and 4 LED output channels. In conjunction with the corresponding dry contact panel, the actuator enables smart control of electrical devices, for example, home lighting, curtain, fan, sockets, etc.


Basic Parameters

Working voltage :21~30V DC

Working current :25mA/30V DC

Auxiliary voltage:20~30V DC

Auxiliary current:25mA/24V DC

Relay channel :2CH, 10A/CH (AC100-240V, 50/60Hz)

Dry contact:4CH dry contact input

LED:4CH LED output, 12mA/CH

Communication :KNX

Cable diameter of KNX terminal:0.6-0.8mm



External Environment



Working temperature :-5?~45?

Working relative humidity :=90%

Storage temperature :-20?~60?

Storage relative humidity :=93%


Specifications


Dimensions:46.8mm×46.8mm×23.5mm

Net weight:41g

Housing material:Flame retardant PC

Installation:Wall box

Protection rating (Compliant with EN 60529) :IP20
