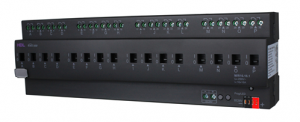

KNX 16CH 16A High Power Switch Actuator (HDL/KNX-EIB Bus relay series products) are fully compliant with European safety standards and protocols for High-power switching KNX equipment, internal use of 50A High-current magnetic relay, zero power consumption and long life are some of the key features.
Electrical Parameters
Working Voltage:21~30VDC
Communication:KNX/EIB
DC current :<15mA
KNX terminals:KNX Bus Terminal – 0.6 – 0.8mm Diameter single-core copper cable
Rated switch voltage:250V AC/440VAC Supply
Rated switch current:16A lighting load, Max inrush 500A
Operation times:>1000000
Output Terminals:Line In, Line Out for each channel 2.5-4m?
Output Current:16CH/16A
capacity:<300µf<>
Environmental Conditions
Working temperature:-5?~45?
Working relative Humidity:Up to 90%
Storage temperature:-25?~+55?
Storage relative humidity:Up to 93%
Product information
Dimensions:H90mm x W288mm x D 66mm
Housing material:Flame-retarded nylon
IP class:IP 20
