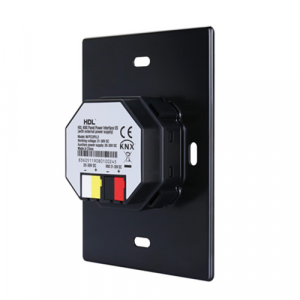

KNX Panel Power Interface EU/US (with External Power Supply) has 2 power interfaces. The KNX bus power interface is a standard KNX communication interface; the auxiliary power interface is connected to an external power supply to provide an auxiliary power input for the matching panel.
Basic Parameters
Working voltage 21~30V DC
Auxiliary power supply 20~30V DC
Communication KNX
Cable diameter of KNX terminal 0.6-0.8mm
External Environment
Working temperature -5?~45?
Working relative humidity =90%
Storage temperature -20?~60?
Storage relative humidity =93%
Specifications
Dimensions
EU: 80×80×28.5(mm) US: 110.5×80×28.5(mm)
Net weight EU: 78g, US: 87g
Housing material Flame-retardant nylon, metal
Installation Wall box (See Figure 9)
Protection rating (Compliant with EN 60529) IP20
